Best trailer brake controllers for different installations

A controller must match the vehicle wiring, trailer brake type and count, legal requirements, mounting limits, and a tested adjustment procedure. It does not compensate for overloaded or poorly maintained brakes.

Source-reviewed 3 products compared
See the short listRun the calculator

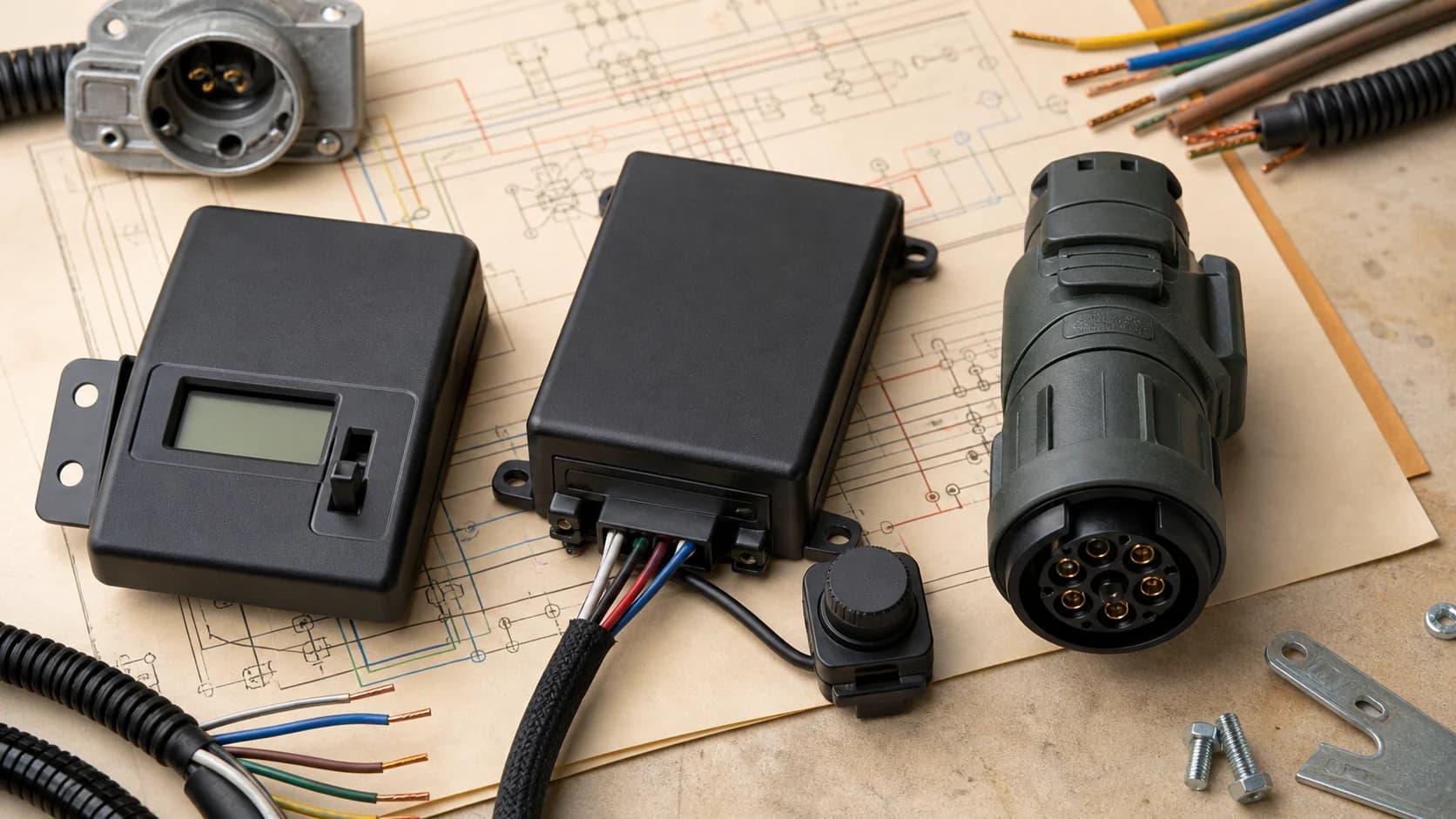

Original editorial still life of three generic trailer brake controller formats and wiring
Original TowCheck editorial artwork. Generic equipment is shown; product-format diagrams below are not scale replicas.

01 · Start here

Distinct fits, not a universal winner

Choose the operating pattern that resembles your setup, then verify every capacity and compatibility constraint.

01

Tekonsha Prodigy P3 90195

The conventional under-dash reference when you want a front display, physical manual lever, diagnostics, five stored preferences, and support for up to four axles.

Best suited for
Visible diagnostics and several saved trailer profiles
Key limitation
The control must face the direction of travel and remain level side to side, needs a compatible wiring harness or correct hardwiring, and occupies visible under-dash space.
Important specification
Installation: Removable under-dash display
Verify before buying
Confirm the vehicle-specific harness or four-wire installation, 12V/ground/stoplight/output circuits, trailer brake type, and one-to-four-axle requirement.
Read the fit notes
View manufacturer specifications
Product links always retain a documented non-affiliate fallback.
02

REDARC Tow-Pro Liberty EBRH-ACCNA

The discreet hardwired pick for one- or two-axle 12-volt trailers using electric or electric-over-hydraulic brakes on road.

Best suited for
Hidden proportional control with a small dash-mounted knob
Key limitation
It has no user-controlled off-road mode, does not support three trailer axles, and installation involves vehicle trim, wiring, switch placement, and a suitable mounting strategy.
Important specification
Installation: Hidden module + dash knob
Verify before buying
Use the exact vehicle-specific harness and switch insert when available or the documented universal installation; REDARC recommends a qualified installer.
Read the fit notes
View manufacturer specifications
Product links always retain a documented non-affiliate fallback.
03

CURT Echo Mobile 51180

The no-cabin-wiring option when the vehicle supplies the required powered 7-way circuits and a phone-based interface is acceptable.

Best suited for
Portable use across compatible tow vehicles with powered 7-way sockets
Key limitation
It supports only one or two axles, depends on 30-amp fused 12V power at the 7-way, has vehicle-specific exceptions, and the app must be foregrounded for timely use of the optional manual button.
Important specification
Installation: 7-way plug-in + Bluetooth app
Verify before buying
Verify +12V, ground, and turn signals at the 7-way, vehicle tow-mode/load-detection behaviour, current app/phone support, connector clearance, and absence of another active brake controller.
Read the fit notes
View manufacturer specifications
Product links always retain a documented non-affiliate fallback.

Calculate first

Verify the complete towing setup first

Brake control is one layer. Confirm loaded weights, ratings, hitch setup, tires, brake condition, and breakaway equipment before calibration.

Open calculator

02 · Comparison

Fit-critical specifications at a glance

Price markers are relative within this comparison, not live quotes. Use each product’s source record for current specifications and availability.

Focus:
Product specifications and fit comparison
ProductBest forInstallationBrake compatibilityTrailer brakesManual overrideRelative priceDetails
Tekonsha Prodigy P3 90195Verified 2026-07-22Visible diagnostics and several saved trailer profilesRemovable under-dash displayElectric or electric-over-hydraulic2–8 brakes / 1–4 axlesPhysical slide lever$$Deep dive
REDARC Tow-Pro Liberty EBRH-ACCNAVerified 2026-07-22Hidden proportional control with a small dash-mounted knobHidden module + dash knobElectric or electric-over-hydraulic1–2 trailer axlesPush-button remote head$$$Deep dive
CURT Echo Mobile 51180Verified 2026-07-22Portable use across compatible tow vehicles with powered 7-way sockets7-way plug-in + Bluetooth appElectric brakes2–4 brakes / 1–2 axlesIn-app; optional wireless button$$$Deep dive

Visible diagnostics and several saved trailer profiles

Tekonsha Prodigy P3 90195

Installation
Removable under-dash display
Brake compatibility
Electric or electric-over-hydraulic
Trailer brakes
2–8 brakes / 1–4 axles
Manual override
Physical slide lever
Relative price
$$
Read the deep dive

Hidden proportional control with a small dash-mounted knob

REDARC Tow-Pro Liberty EBRH-ACCNA

Installation
Hidden module + dash knob
Brake compatibility
Electric or electric-over-hydraulic
Trailer brakes
1–2 trailer axles
Manual override
Push-button remote head
Relative price
$$$
Read the deep dive

Portable use across compatible tow vehicles with powered 7-way sockets

CURT Echo Mobile 51180

Installation
7-way plug-in + Bluetooth app
Brake compatibility
Electric brakes
Trailer brakes
2–4 brakes / 1–2 axles
Manual override
In-app; optional wireless button
Relative price
$$$
Read the deep dive

03 · How we evaluated

The criteria behind the short list

We favour documented constraints and reproducible setup over feature count. These pages do not represent hands-on laboratory testing unless explicitly stated.

  1. 01

    Trailer brake type, number of braked wheels/axles, electric-over-hydraulic support, breakaway system, wiring condition, and legal requirements.

  2. 02

    Vehicle-specific harness and software/tow-mode requirements, 7-way power/current, stoplight signal, existing factory controller, airbags, trim, and reachable override position.

  3. 03

    Proportional sensor orientation and calibration, output and boost/gain adjustment, diagnostics, profile storage, reverse behaviour, and manual activation.

  4. 04

    A controlled low-speed test procedure, changing loads and road conditions, trailer-brake maintenance, connector care, app support, and warranty.

04 · Product notes

Where each option fits—and where it does not

Each recommendation is conditional. The “avoid when” note matters as much as the feature list.

Installation
Removable under-dash display
Brake compatibility
Electric or electric-over-hydraulic
Trailer brakes
2–8 brakes / 1–4 axles

Pick 1 · Visible diagnostics and several saved trailer profiles

Tekonsha Prodigy P3 90195

The conventional under-dash reference when you want a front display, physical manual lever, diagnostics, five stored preferences, and support for up to four axles.

Why it fits

Tekonsha documents proportional inertia sensing, electric and electric-over-hydraulic modes, 2/4/6/8 brake applications, boost levels, manual control, self-levelling, mounting orientation, and setup procedure.

Strengths

  • Detailed diagnostics
  • Five saved settings
  • Broad documented brake count

Tradeoffs

  • Visible under-dash unit
  • Direction and side-level mounting limits
Compatibility check
Confirm the vehicle-specific harness or four-wire installation, 12V/ground/stoplight/output circuits, trailer brake type, and one-to-four-axle requirement.
Avoid when
There is no suitable driver-reachable mounting location, the vehicle needs special integration beyond the manual, or a hidden factory-look installation is the priority.
Published limitation
The control must face the direction of travel and remain level side to side, needs a compatible wiring harness or correct hardwiring, and occupies visible under-dash space.
Warranty record
Limited lifetime warranty stated on the reviewed manufacturer page; read full terms.
View manufacturer specifications
Check your requirement
Installation
Hidden module + dash knob
Brake compatibility
Electric or electric-over-hydraulic
Trailer brakes
1–2 trailer axles

Pick 2 · Hidden proportional control with a small dash-mounted knob

REDARC Tow-Pro Liberty EBRH-ACCNA

The discreet hardwired pick for one- or two-axle 12-volt trailers using electric or electric-over-hydraulic brakes on road.

Why it fits

REDARC publishes a hidden three-axis module, active calibration, proportional Everyday Mode, dash remote/manual override, 9–16V operation, 18A maximum power current, and one-to-two-axle support.

Strengths

  • Minimal dash footprint
  • Any-orientation main module
  • Active calibration

Tradeoffs

  • Hardwired installation
  • No off-road user-controlled mode; no 3-axle support
Compatibility check
Use the exact vehicle-specific harness and switch insert when available or the documented universal installation; REDARC recommends a qualified installer.
Avoid when
The trailer has three or more axles, a user-controlled off-road mode is required, or the dash cannot accept a compliant remote-head location.
Published limitation
It has no user-controlled off-road mode, does not support three trailer axles, and installation involves vehicle trim, wiring, switch placement, and a suitable mounting strategy.
Warranty record
Two years stated on the reviewed manufacturer specification table.
View manufacturer specifications
Check your requirement
Installation
7-way plug-in + Bluetooth app
Brake compatibility
Electric brakes
Trailer brakes
2–4 brakes / 1–2 axles

Pick 3 · Portable use across compatible tow vehicles with powered 7-way sockets

CURT Echo Mobile 51180

The no-cabin-wiring option when the vehicle supplies the required powered 7-way circuits and a phone-based interface is acceptable.

Why it fits

The Echo plugs between vehicle and trailer, uses a triple-axis accelerometer, supports two to four trailer brakes, stores profiles, and continues with the last settings if Bluetooth disconnects.

Strengths

  • No cabin wiring
  • Moves between compatible vehicles
  • Last settings continue if Bluetooth drops

Tradeoffs

  • Powered 7-way and phone/app dependencies
  • Only one or two axles
Compatibility check
Verify +12V, ground, and turn signals at the 7-way, vehicle tow-mode/load-detection behaviour, current app/phone support, connector clearance, and absence of another active brake controller.
Avoid when
The vehicle cannot maintain powered 7-way output, the trailer has more than two axles, smartphone operation is unsuitable, or the connector sits near exhaust heat.
Published limitation
It supports only one or two axles, depends on 30-amp fused 12V power at the 7-way, has vehicle-specific exceptions, and the app must be foregrounded for timely use of the optional manual button.
Warranty record
Limited lifetime warranty stated on the reviewed product page; read full terms.
View manufacturer specifications
Check your requirement

Decision tool

Choose the installation you can verify and operate

All three are proportional formats; their fit and interface constraints differ substantially.

01Which installation constraint dominates?
02What is the verified trailer-brake count?

05 · Selection method

How to make the final choice

A product page tells you what a component can do. Your measured setup determines whether it belongs in the system.

01

Verify the brake hardware

Identify electric versus electric-over-hydraulic brakes, count braked wheels and axles, inspect wiring/connectors, and service brakes before blaming controller settings.

02

Choose a reachable override

The driver must understand and reach the manual function without unsafe distraction. A phone interface needs an explicit mounting and operating plan.

03

Set up under controlled conditions

Follow the manufacturer’s calibration and low-speed dry-pavement adjustment sequence, then revisit gain/boost when trailer load or road conditions change.

Safety boundary

Before you install or operate

  • A brake controller cannot correct overloaded ratings, failed trailer brakes, poor tire traction, incorrect hitch setup, or an inoperative breakaway system.
  • Use the exact vehicle wiring method and circuit protection. Incorrect stoplight, power, ground, or output connections can remove or misapply trailer braking.
  • Make adjustments only when permitted and without distracted driving; follow the controller, vehicle, trailer, and brake actuator manuals.
  • Test trailer brakes and lights before travel and investigate every fault, short, overload, disconnect, or inconsistent braking response before continuing.

06 · Common questions

Questions to settle before checkout

Do I need a brake controller for my trailer?

Requirements depend on trailer equipment, loaded weight, vehicle, and jurisdiction. Confirm the applicable law and both vehicle and trailer instructions; do not rely on a generic threshold.

Is proportional always better than time-delayed?

These three are proportional formats, but installation fit, brake compatibility, axle count, adjustment, and driver interface still decide whether one is appropriate.

Will a wireless controller work if the phone disconnects?

CURT states the Echo Mobile continues with the most recently programmed settings if Bluetooth is lost. Its manual also notes app and optional override-button limitations that must be understood.

Source record

Documents reviewed for this comparison

We prefer current manufacturer pages and manuals. A retailer is used where it is the clearest available record and is labeled as such.

REDARC Tow-Pro Liberty EBRH-ACCNA

Last checked July 22, 2026

CURT Echo Mobile 51180

Last checked July 22, 2026

  • CURT Echo Mobile 51180 product page manufacturer · checked 2026-07-22Install format, app, accelerometer, brake count, profiles, protection, Bluetooth-loss behaviour, compatibility, manual-button option, and warranty.
  • CURT Echo Mobile installation manual manual · checked 2026-07-22Required 7-way circuits and 30A fuse, vehicle-specific requirements, app foreground warning, no-other-controller rule, heat placement, setup, testing, storage, and troubleshooting.
